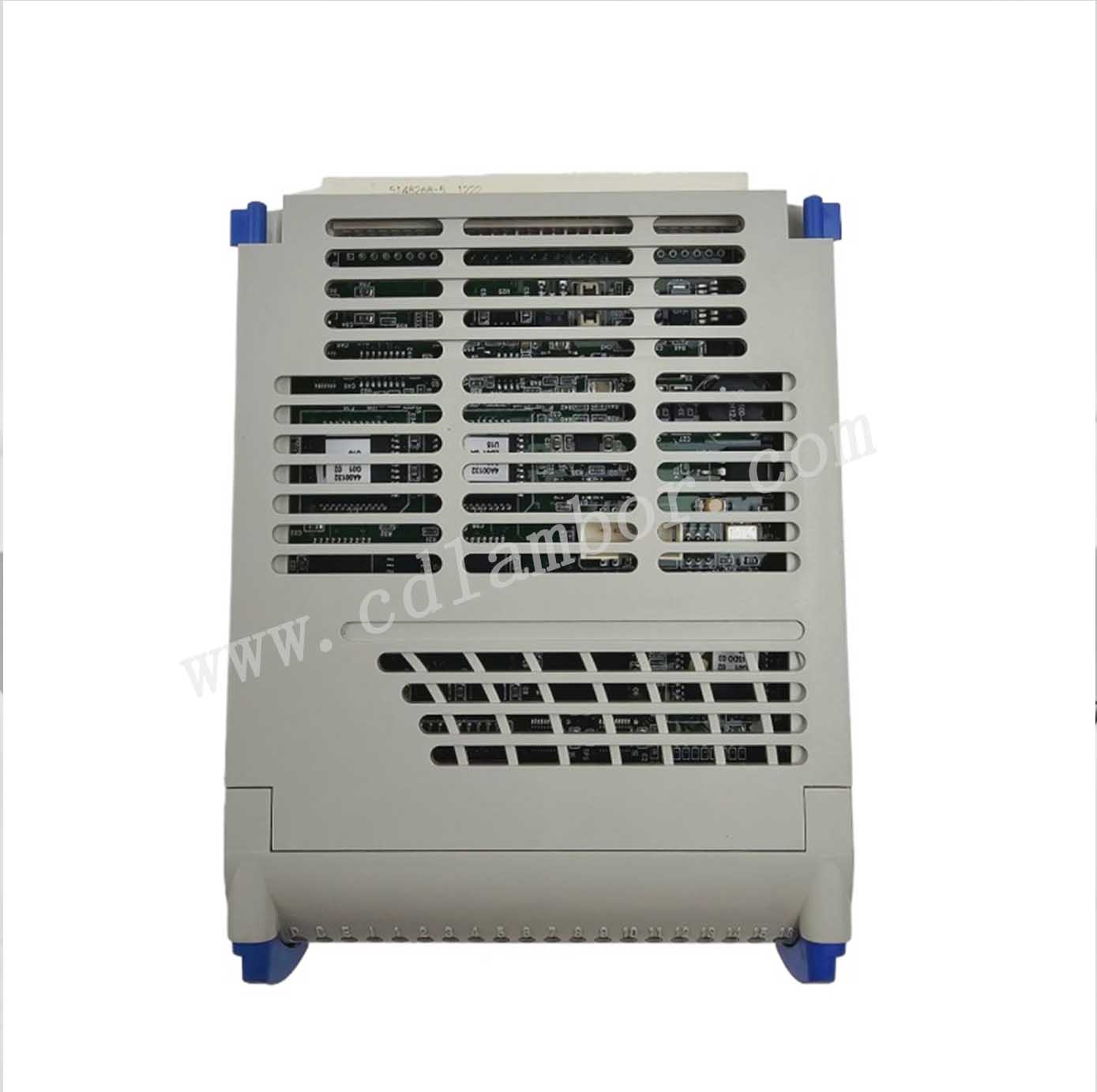

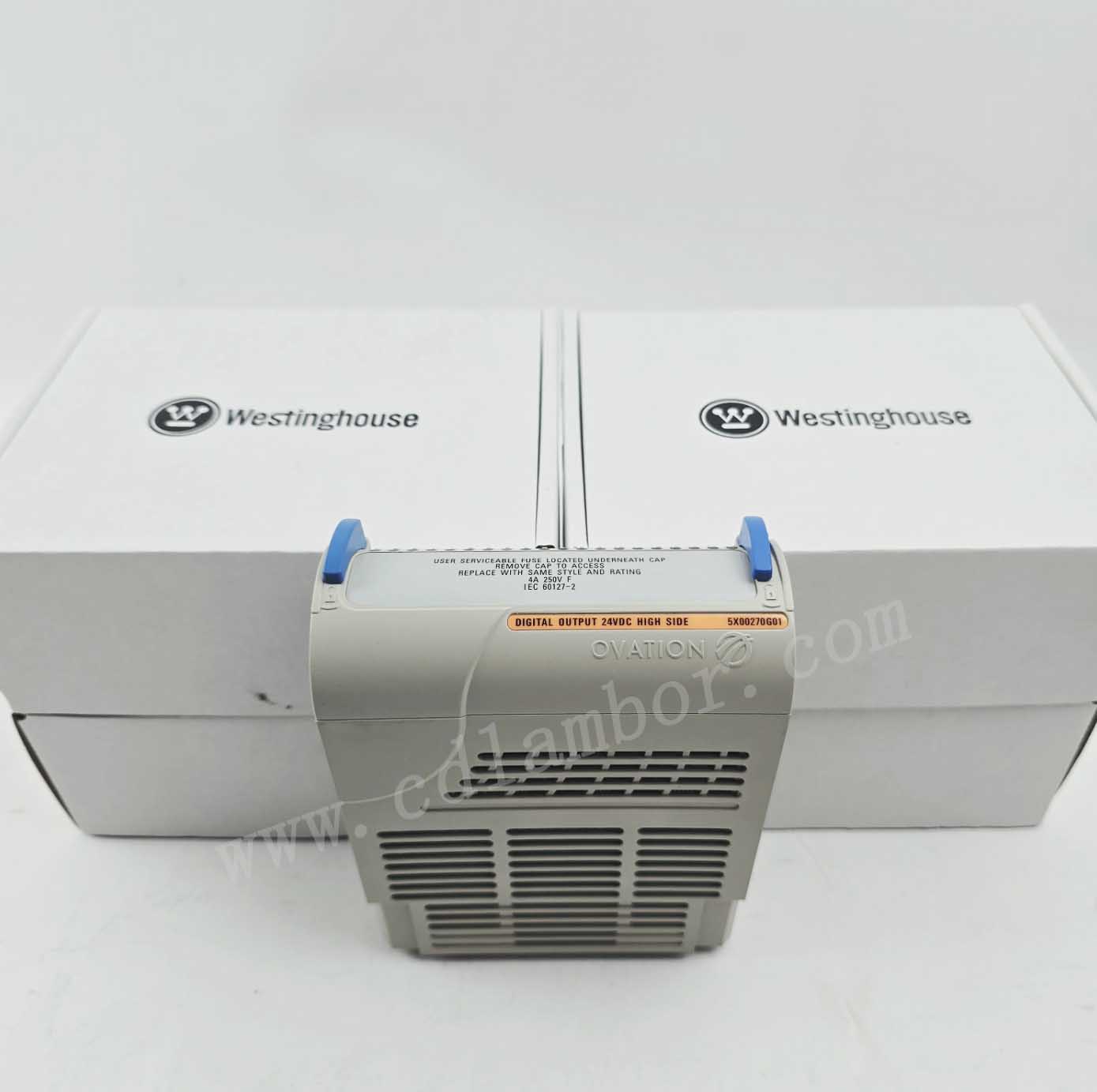

Emerson Ovation 5X00270G01 Redundant Digital Output Module

Description:

The Ovation 5X00270G01 is a high-side digital output module designed for 24VDC operation. Capable of controlling up to 8 outputs, this field-replaceable module is no longer manufactured by Emerson but remains available through select distributors.

Features:

• Number of Outputs: 8

• Voltage: 24VDC

• Switching Type: High-side

• Communication: Modbus RTU

• Dimensions: 96 x 96 x 55 mm

• Weight: 0.2 kg

• Redundancy: Can operate in redundant mode

Specifications:

• Output Channels: 16 optically isolated digital output channels

• Output Current: Each channel can source up to 500 mA

• Power Supply Options:

• Ovation Power Supply AUX Output (max 2A per module)

• External 24VDC Power Source (max 4A per module)

• Module Configuration:

• Personality Module

• Electronics Module
