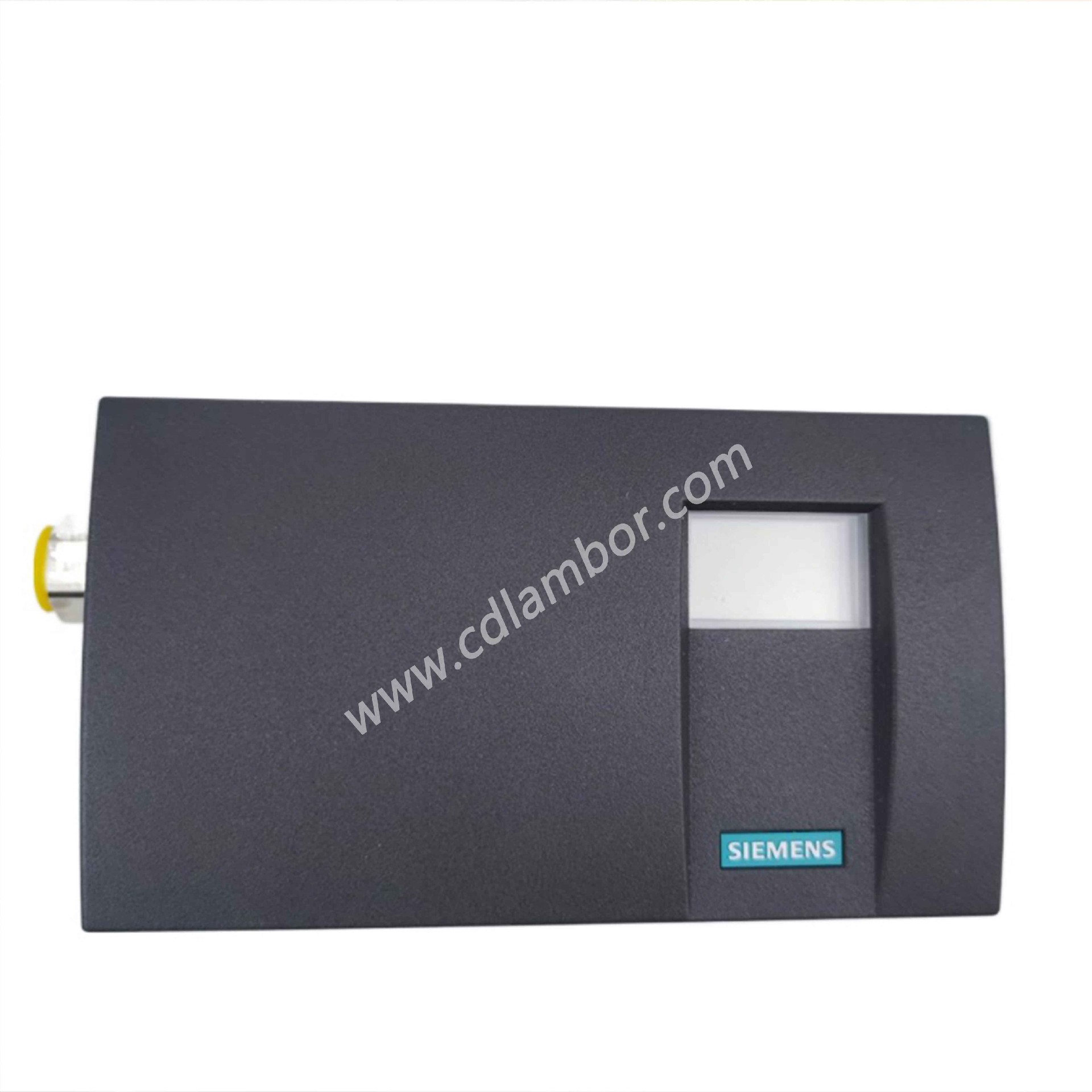

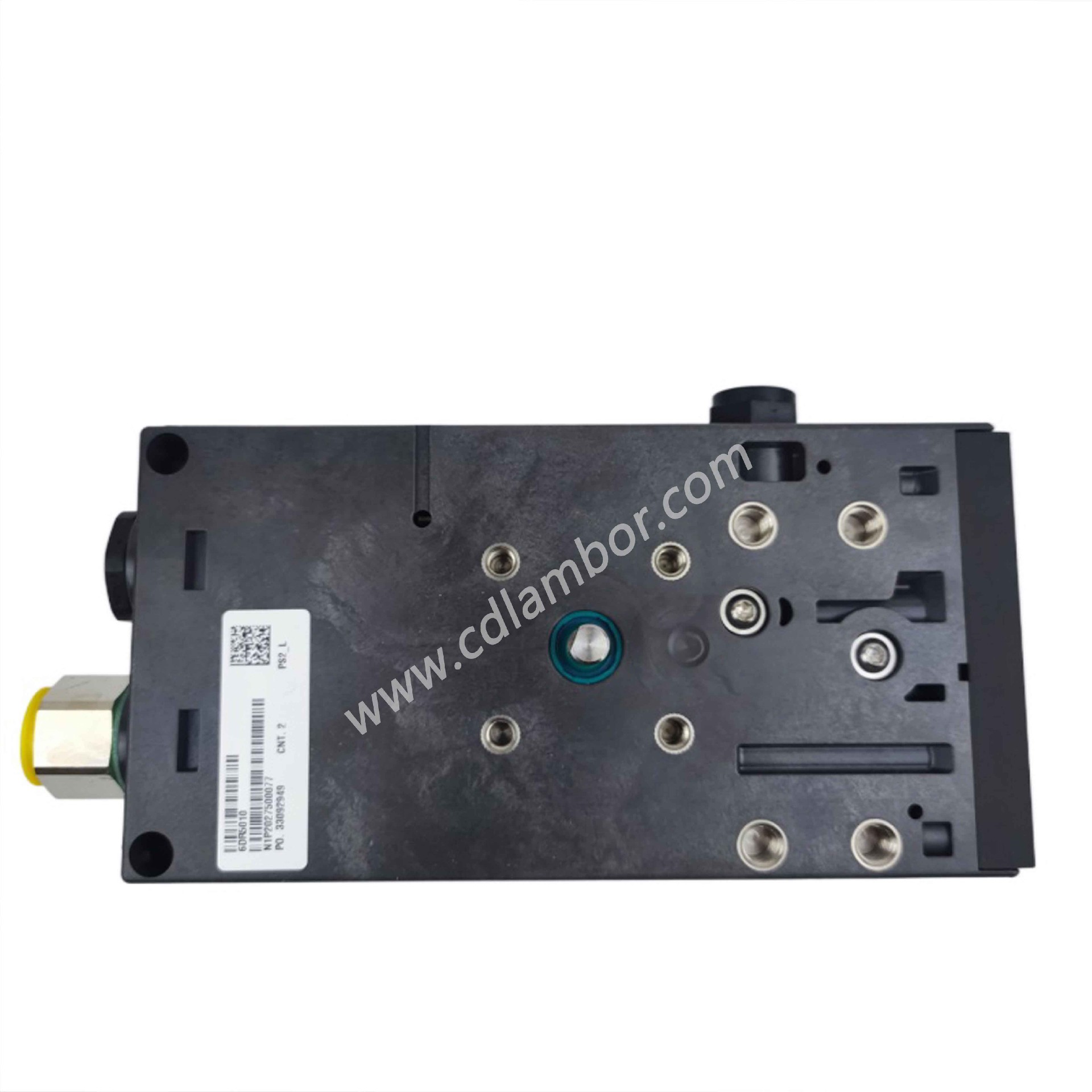

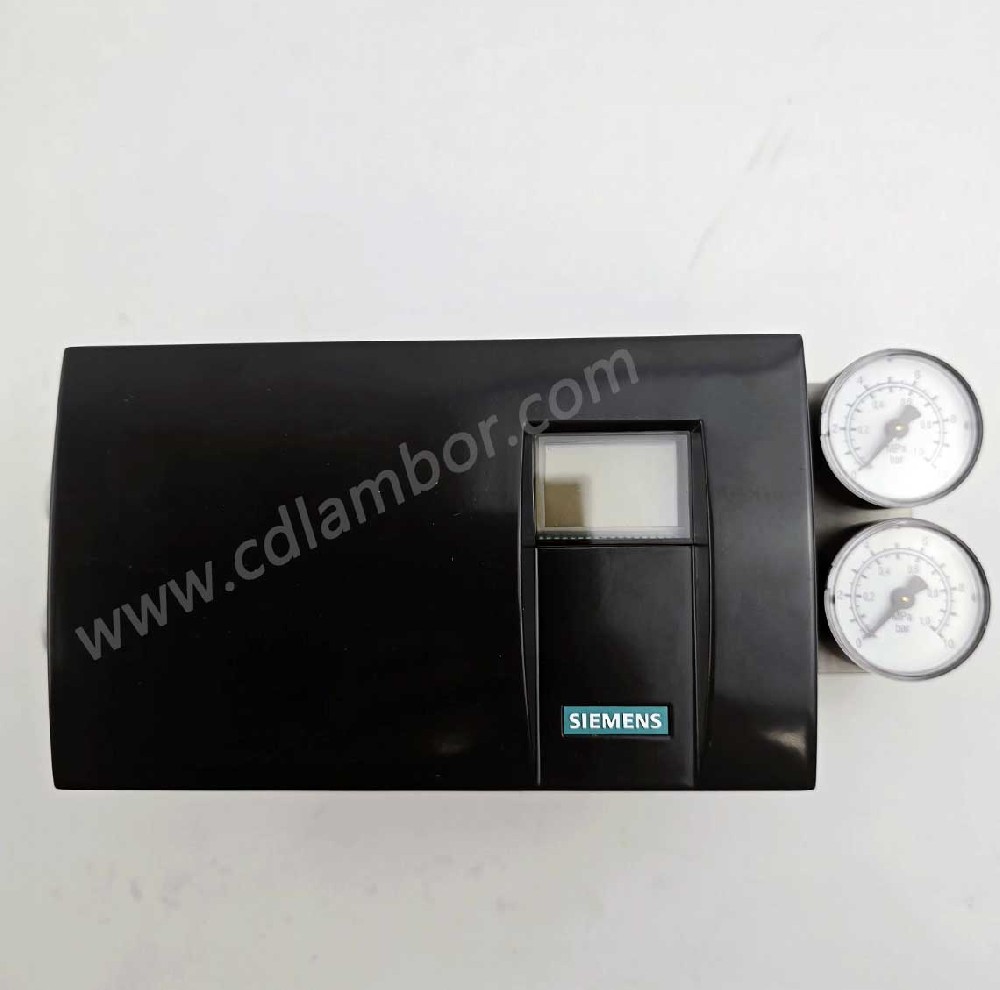

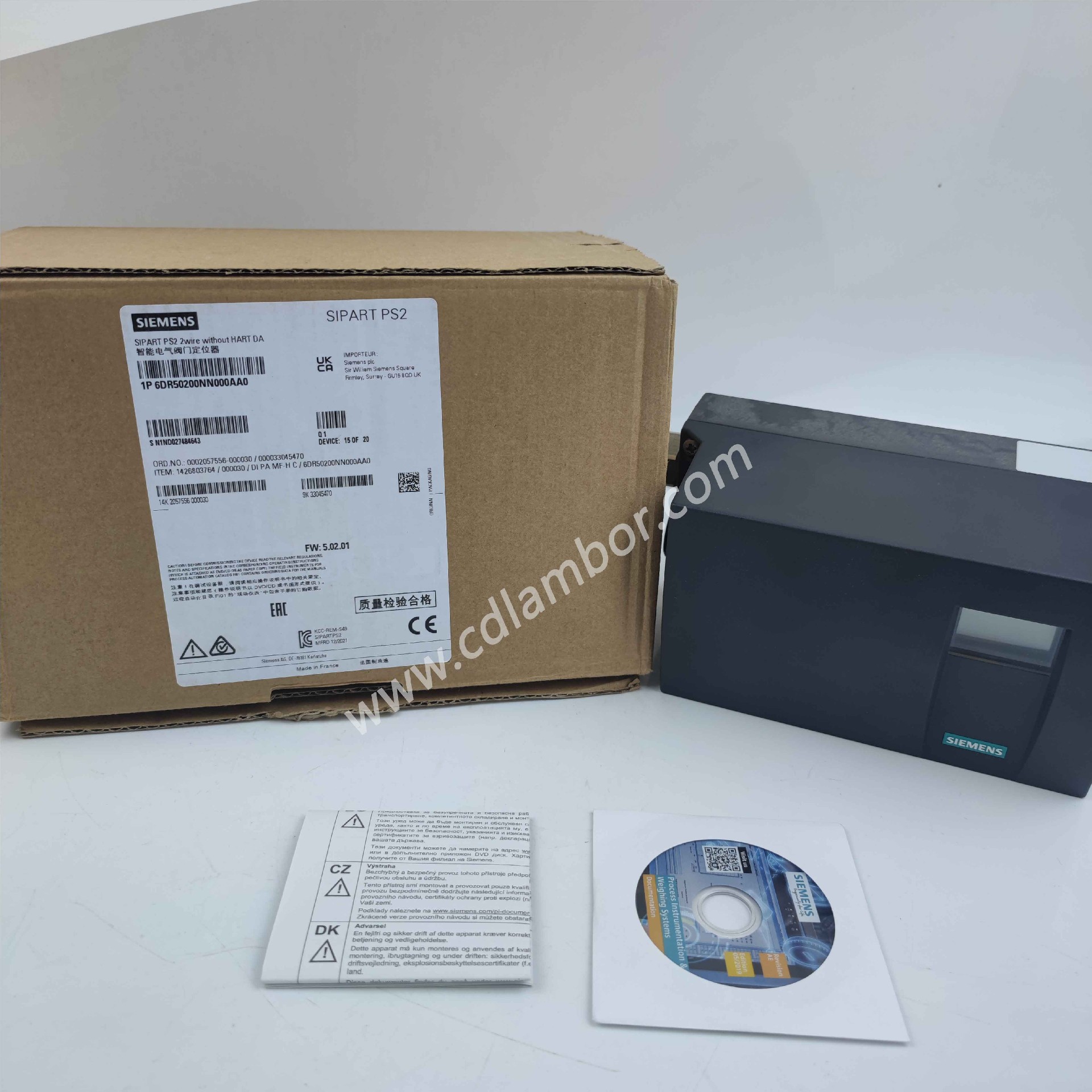

Original Siemens 6dr5010 Valve Positioner Sipart PS2 Controller Module Smart Pneumatic Positioner 6d

1.Descreption

    SIPART PS2 positioners offer decisive advantages:

     • Simple mounting and automatic commissioning
 • Simple operation and configuration of the device using 3 buttons and one 2-line local display or via SIMATIC PDM

     • Very high control performance

     • Negligible air consumption in stationary operation

     • "Tight closing" function ensures maximum positioning pressure on the process valve seat

     • "Fast Open/Fast Close" function for defined approach of the end position with fast reaction to new setpoint specifications

     • "Fail in Place" function: Maintain current position on failure of electrical and/or pneumatic auxiliary power

     • Numerous functions can be activated by simple configuring (e.g. characteristic curves and limits)

     • One device variant for linear and part-turn actuators

     • Insensitive to vibrations due to few moving parts and optionally with wear-free position detection

     • External non-contacting sensor as option for extreme ambient conditions

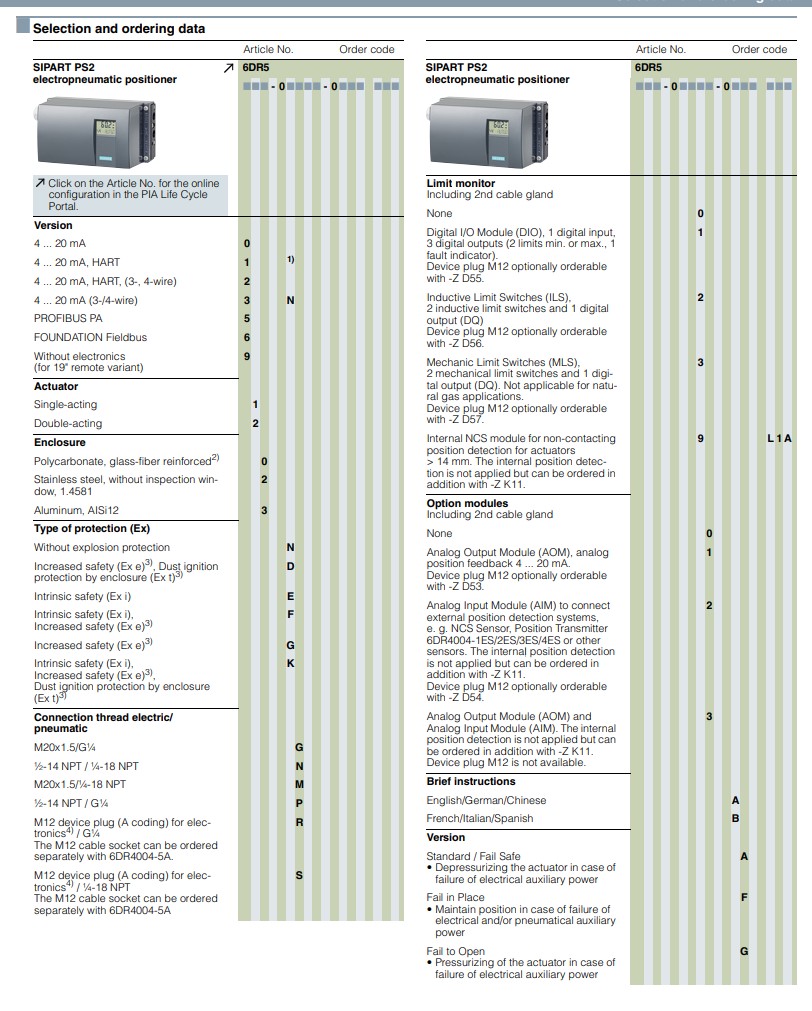

2.How to order
