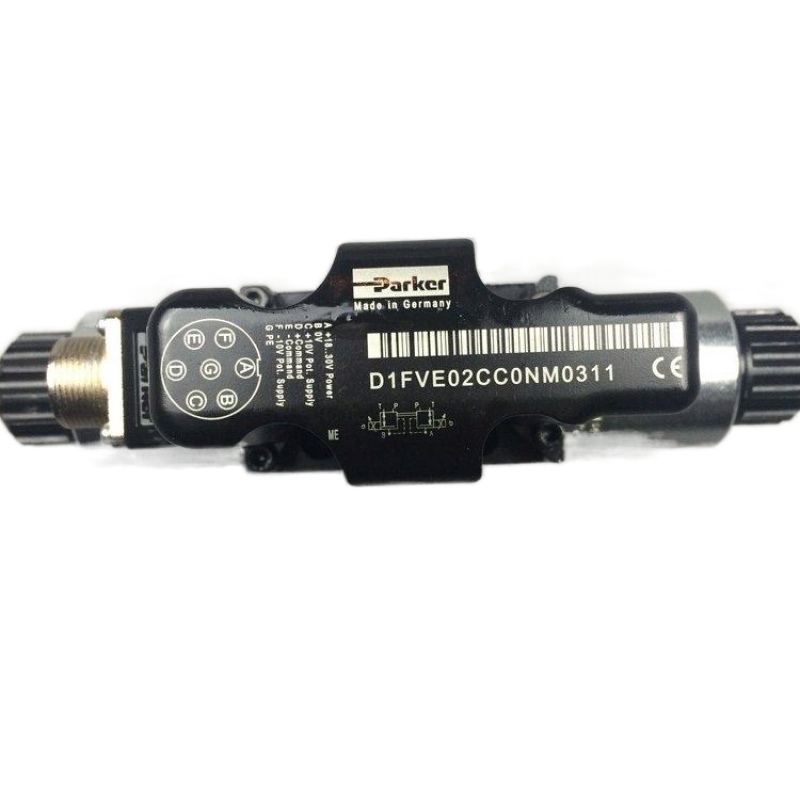

Parker D1FVE02CC0NM03 Proportional Pressure Reducing Valve

1.Descreption

    Series D1FV proportional pressure reducing valves are available with and without onboard electronics (OBE).

    D1FV OBE

    The digital onboard electronics is situated in a robust metal housing, which allows the usage under rough environmental conditions. The nominal values are factory set. The cable for connection to a serial RS-232 interface is available as accessory.

    D1FV for External Electronics

    The parameters can be saved, changed and duplicated in combination with the digital power amplifier PWD00A-400. The value parameters can be edited with the common ProPxD software for both versions. The D1FV values control the pressure in the A- or B-ports using the barometric feedback principle

2.Features

    • Barometric feedback

    • 3 command options for D1FV OBE: ±10V, 4...20mA, ±20mA

    • High repeatability from valve to valve • Low hysteresis

    • Manual override

    • Pressure ranges 25 Bar (363 PSI) and 45 Bar (653 PSI)

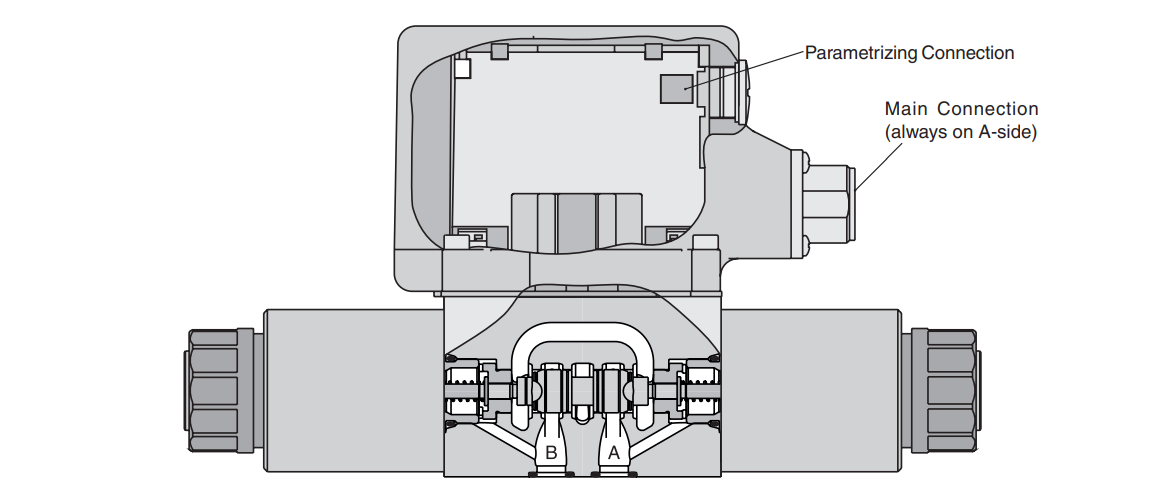

3.Structural diagram

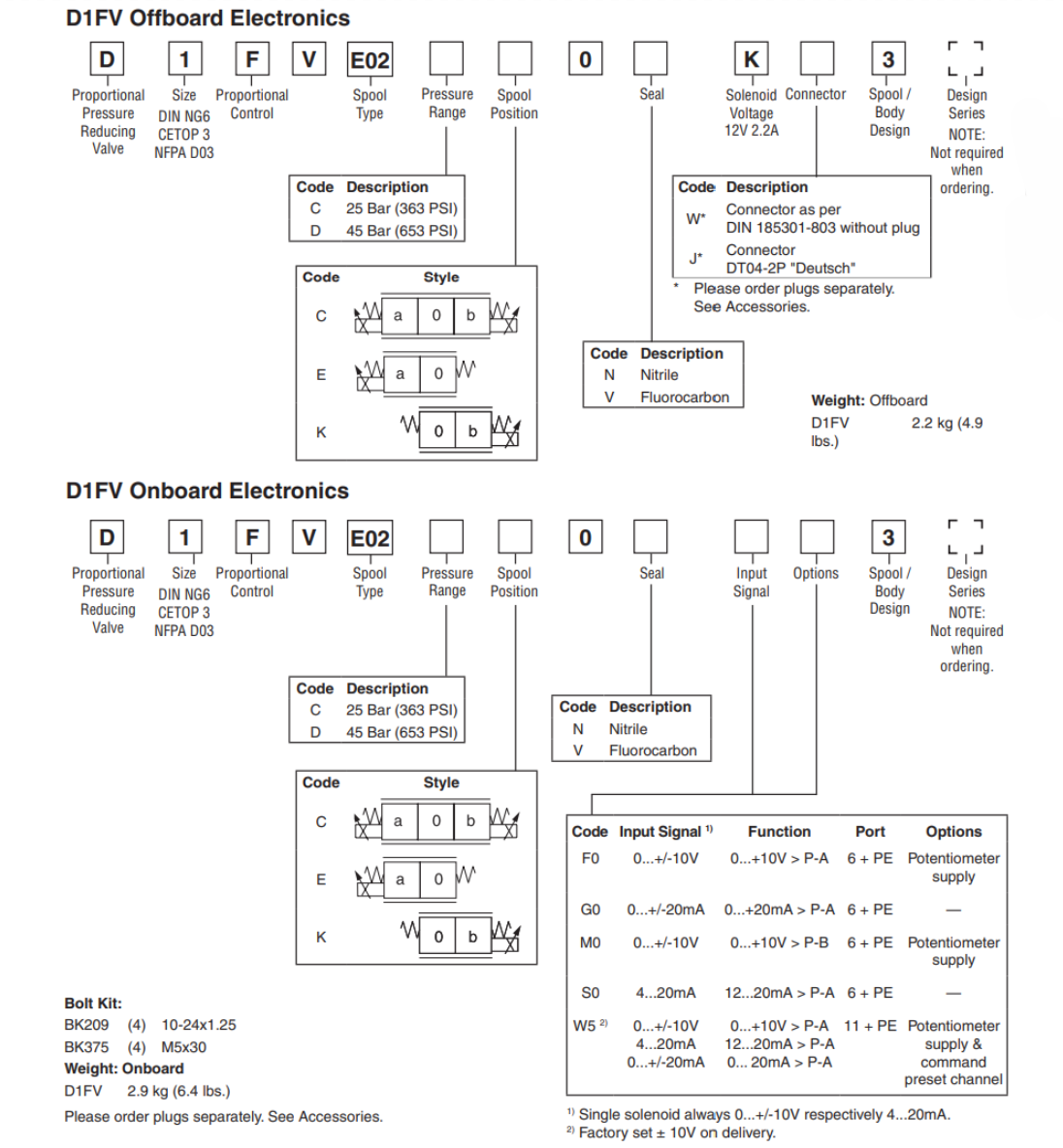

4.How to Order
