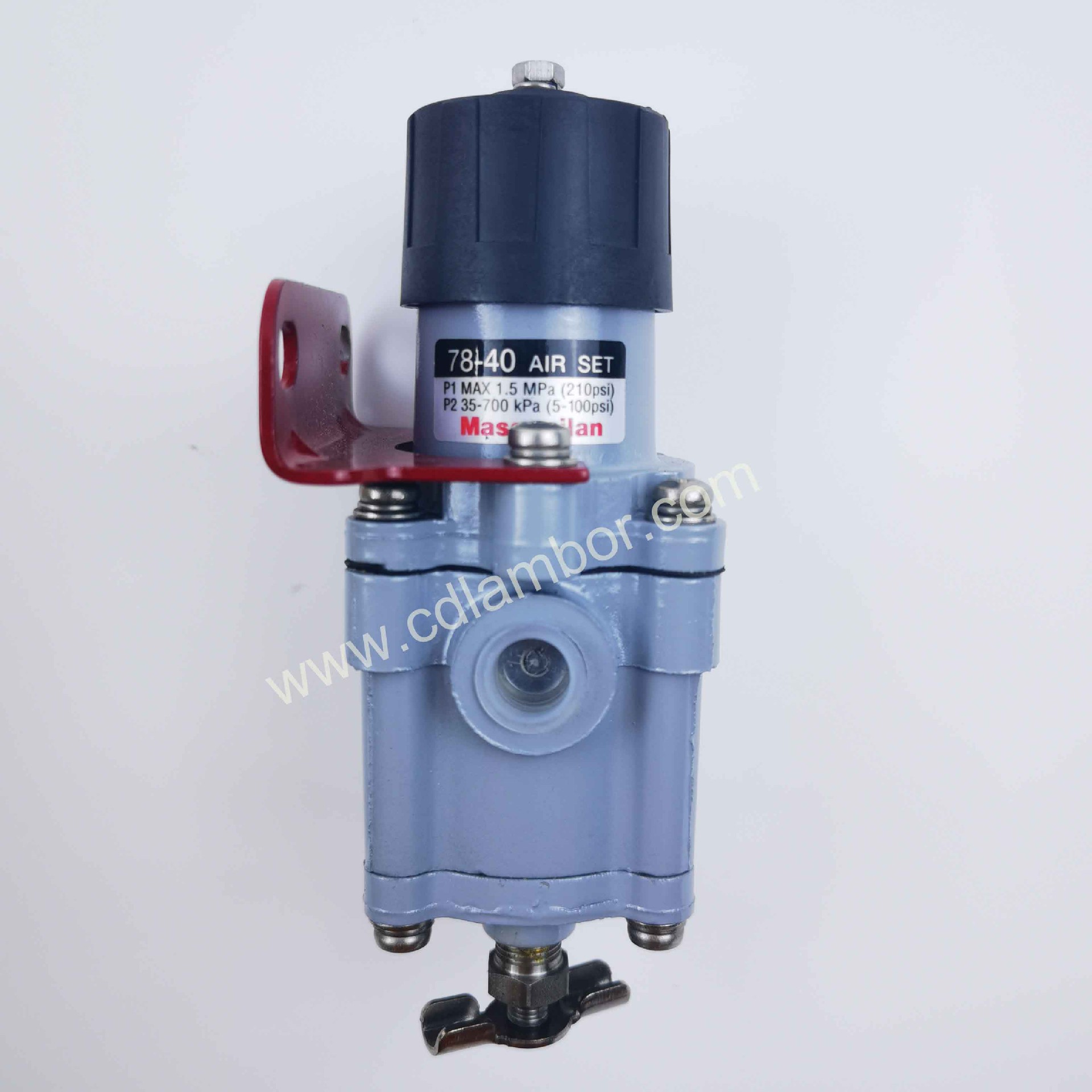

Masoneilan 78-40 air gas Air Filter 1/4NPT Pressure control automatic voltage pressure regulators
Category:Masoneilan
1.Descreption
The 78 Series pressure regulators are compact, lightweight, high-performance pressure reducing valves. They are used primarily for supplying a stable source of air to process control equipment such as current to pneumatic transducers and control valve positioners.
2.Features
• Excellent pressure regulation.
• Lock screw ensures output pressure remains at desired value.
• Small size and light weight allows the regulator to be nipple mounted in most installations, eliminating the need for a mounting bracket. A mounting bracket is available if required.
• Two pressure gauge ports allow installation of gauge on either side for flexibility when mounting.
• Soft seat plug on main valve provides positive shutoff.
• Sintered polyethylene filters provide 5 micron filtration rating.
• Stainless steel drain.
• Corrosion resistant finish and stainless assembly hardware permit use in corrosive environments.

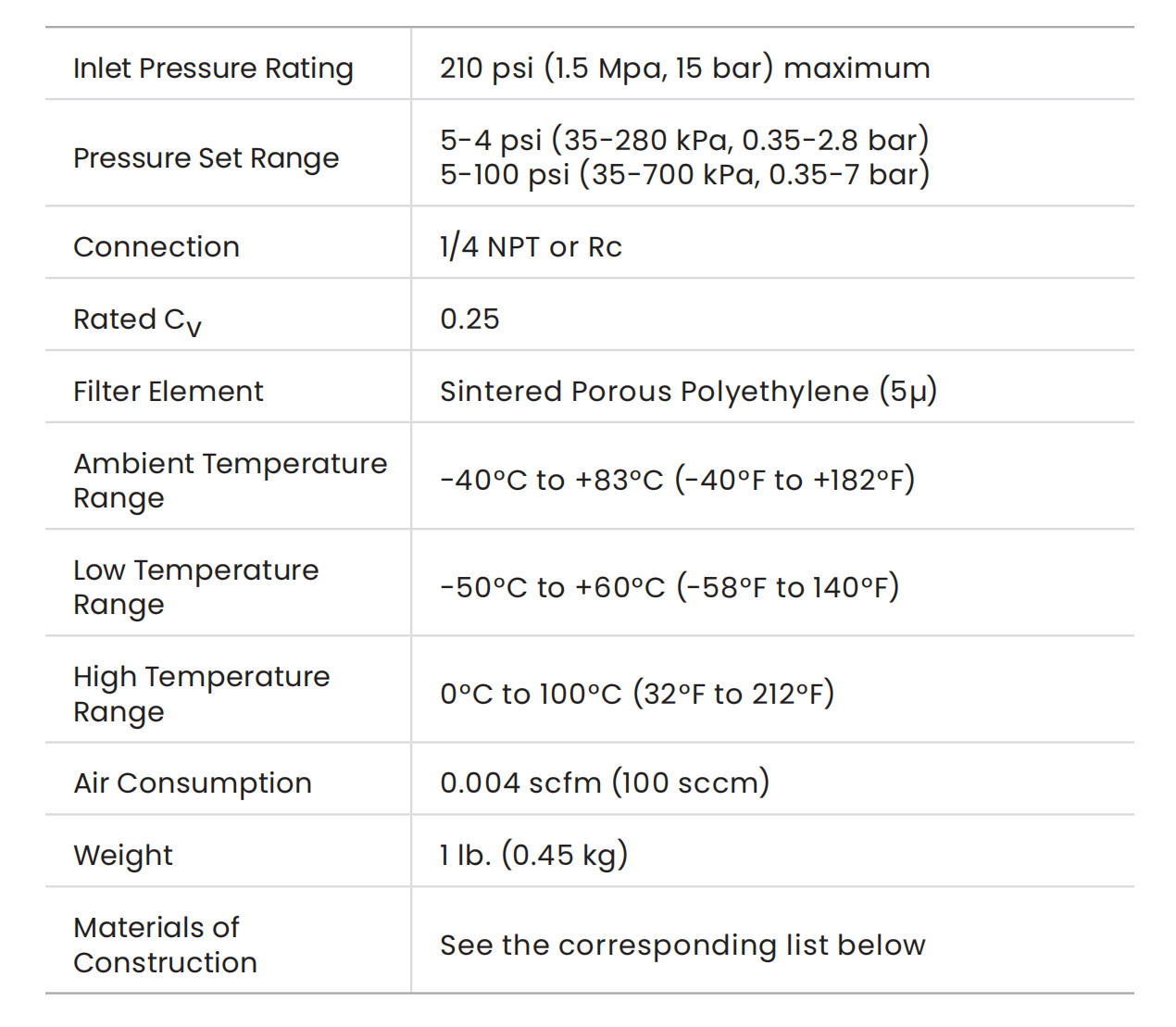

3.Configuration

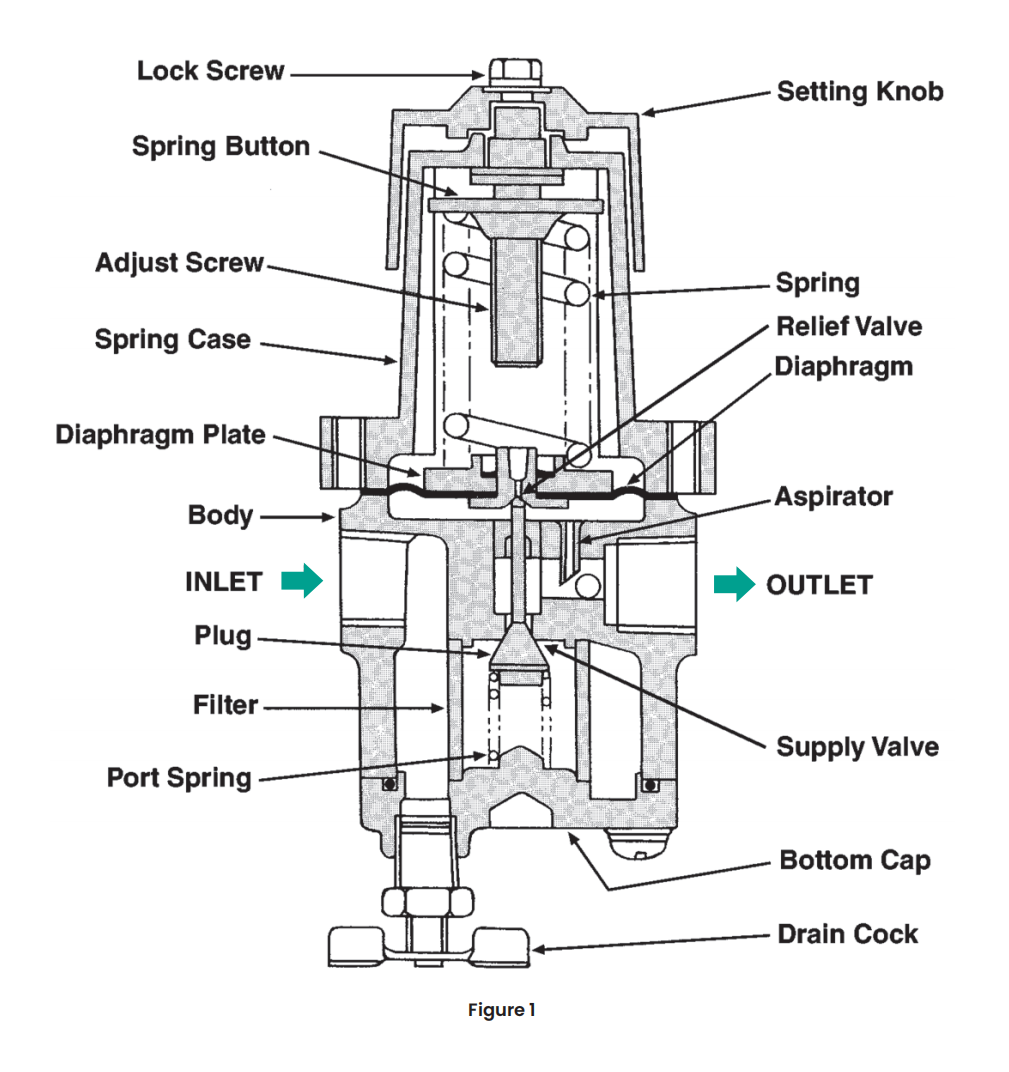

4.Structural diagram
-
