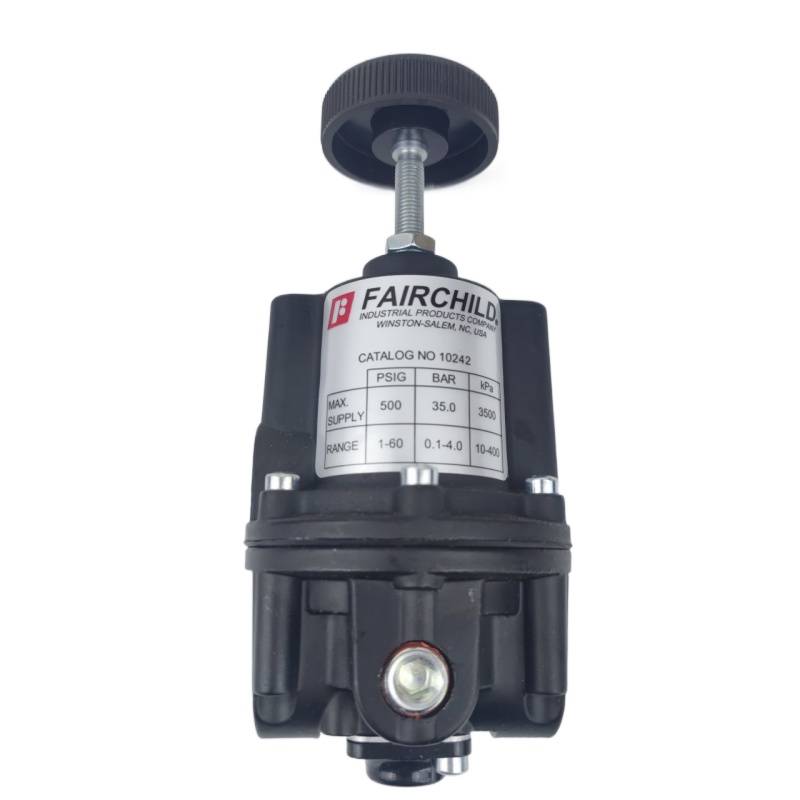

USA factory Fairchild 10242 Medium-low pressure High Precision filter pressure reducing regulator

1.Descreption

    The Model 10 is designed for applications that require high capacity and accurate process control. A supply valve which is balanced by utilizing a rolling diaphragm, insures a constant output pressure even during wide supply pressure variations. Stability of regulated pressure is maintained under varying flow conditions through the use of an aspirator tube which adjusts the supply valve in accordance with the flow velocity.

2.Features

    • Control sensitivity of 1/8" water column  allows use in precision processes.

    • Pressure balanced supply valve prevents  supply pressure changes from affecting the  setpoint.

    • Optional check valve permits Backflow of  downstream pressure when supply is  opened to atmosphere.

    • Separate control chamber isolates the  diaphragm from the main flow to eliminate  hunting and buzzing.

    • An aspirator tube compensates  downstream pressure droop under flow  conditions.

    • Canadian Registration Number (CRN)  certification for all territories and provinces.

    • NO Yellow Metals available for harsh  media.

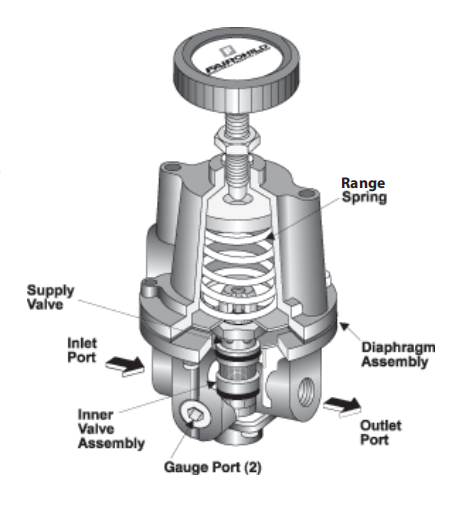

3.Structural diagram

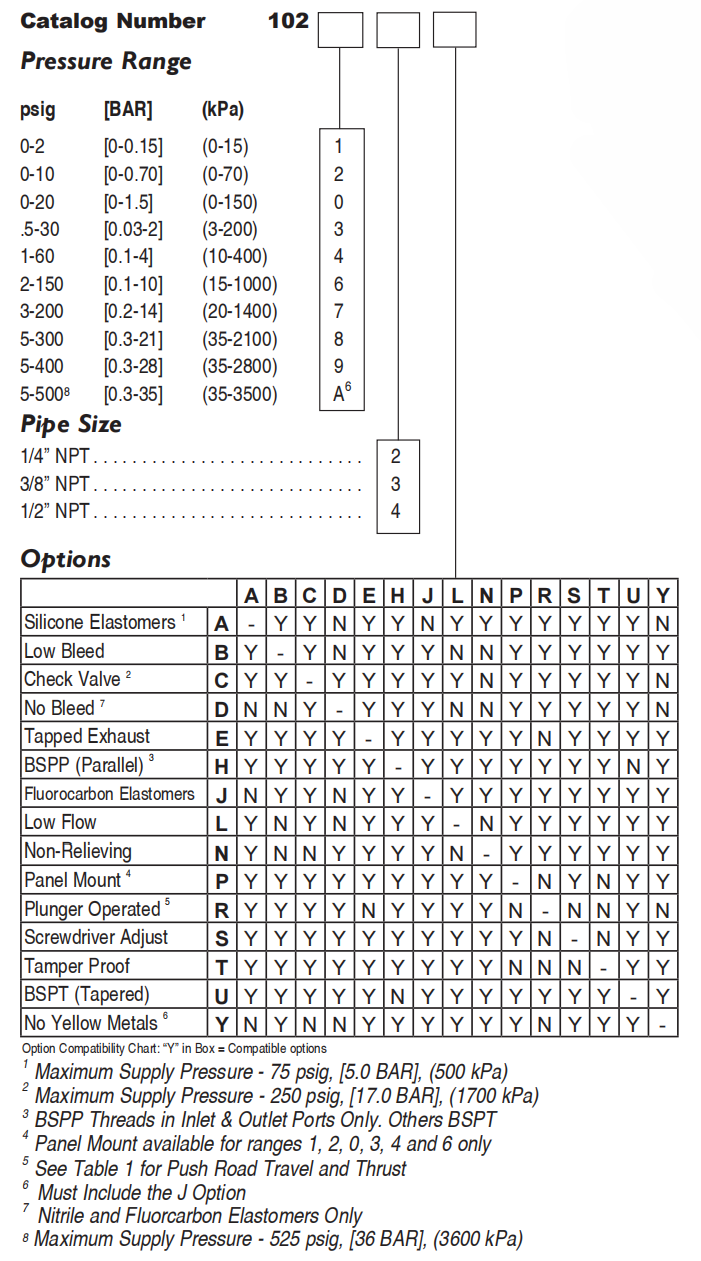

4.How to Order

5.Video
