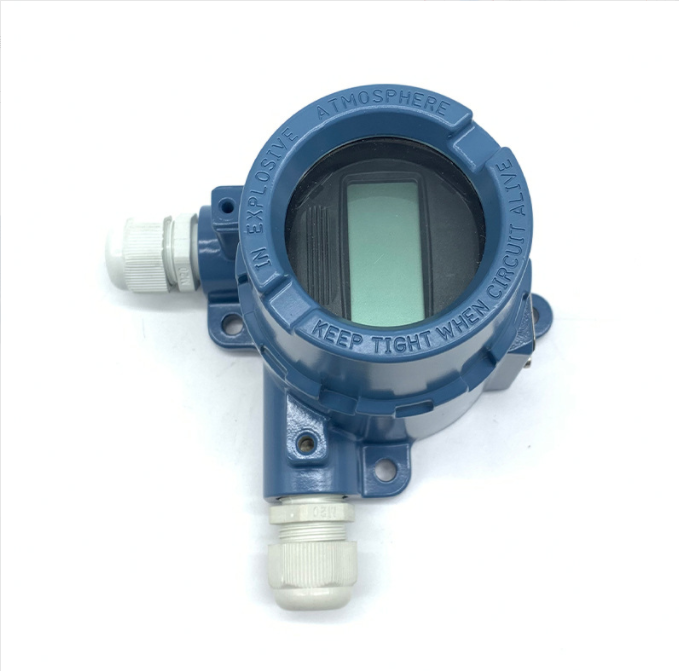

Rosemount 644 temperature transmitter 644HAK5J6M5 integrated module 4-20mA output

1.Descreption

    Reduce complexity and simplify the day-to-day operations of your diverse temperature applications with the versatile Rosemount 644 family of temperature transmitters. Make better decisions for your process with the new and easy-to-use Rosemount 644 Transmitter capabilities including: diagnostics, safety certification, integral transient protection, and display options.

2.Specifications

    Input:Dual and single sensor capability with universal sensor inputs (RTD, T/C, mV, ohms)

    Output Signal:4-20 mA /HART® protocol, FOUNDATION™ Fieldbus protocol

    Housing:Dual-compartment field mount

    Display/Interface:LCD Display, LCD Display with Local Operator Interface (LOI), or LED

    Diagnostics:Basic diagnostics, Hot Backup™ capability, sensor drift alert, thermocouple degradation, min/max tracking

    Calibration Options:Transmitter-sensor matching (Callendar-Van Dusen constants), 5-point calibration

    Certifications/Approvals:SIL 2/3 certified to IEC 61508 by an independent 3rd party, hazardous location, marine type, see full specs for complete list of certifications

3.Video

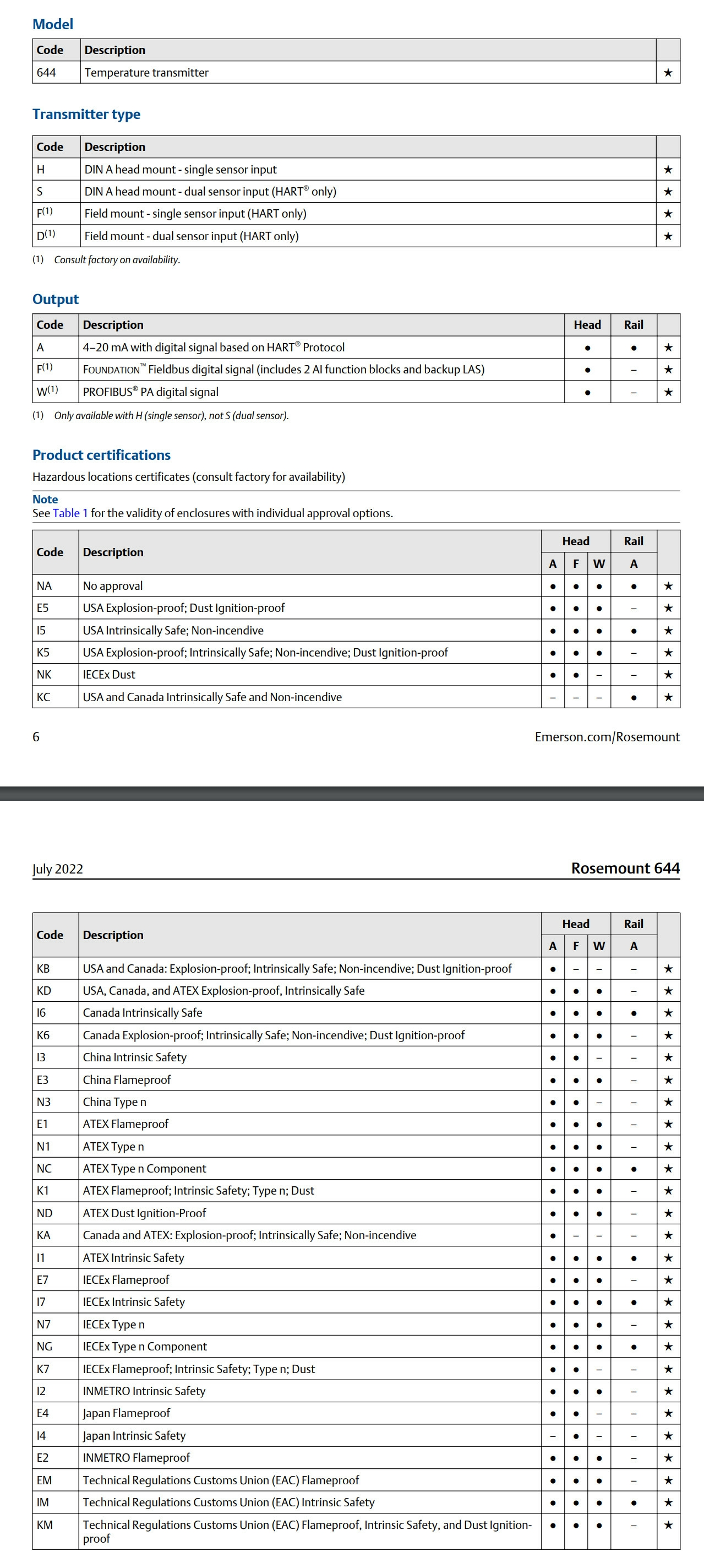

4.How to Order
