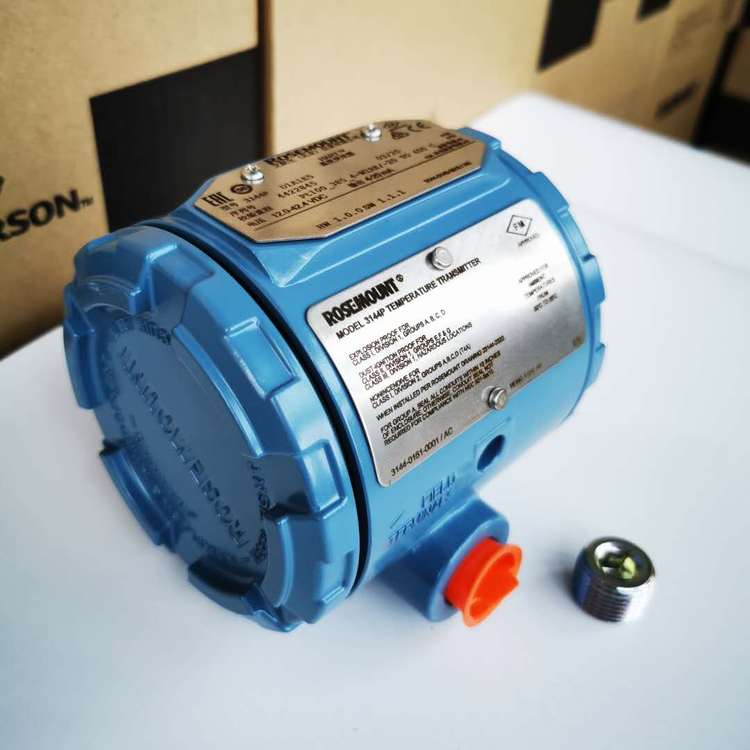

Rosemounte 3144 smart temperature transmitter with RTD sensor 4-20ma

1.Descreption

    The Rosemount 3144P Temperature Transmitter provides industry-leading accuracy, stability and reliability for your temperature measurements. It features a dual-compartment housing to ensure reliability and advanced diagnostics to keep your measurement point up and running. When combined with Rosemount X-well™ Technology and the Rosemount 0085 Pipe Clamp sensor, this transmitter can provide accurate measurement of process temperature, eliminating the need for a thermowell or process penetration.

2.Specifications

    Input:Dual and single sensor capability with universal sensor inputs (RTD, T/C, mV, ohms)

    Output Signal:4-20 mA /HART® protocol, FOUNDATION™ Fieldbus protocol

    Housing:Dual-compartment field mount

    Display/Interface:Large LCD display with percent range graph and buttons/switches

    Diagnostics:Basic diagnostics, Hot Backup™ capability, sensor drift alert, thermocouple degradation, min/max tracking

    Calibration Options:Transmitter-sensor matching (Callendar-Van Dusen constants), custom trim

    Certifications/Approvals:SIL 2/3 certified to IEC 61508 by an independent 3rd party, hazardous location, marine type, see full specs for complete list of certifications

3.How to Order
