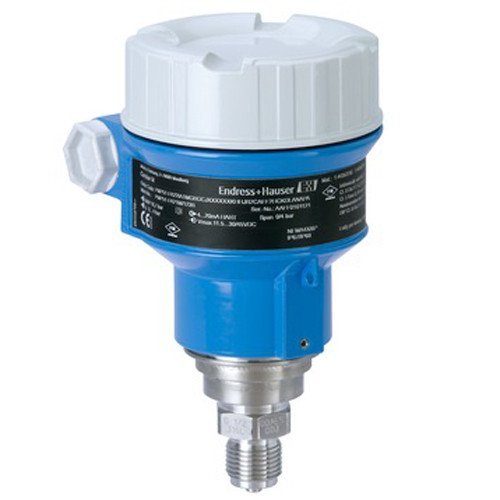

E+H PMP51 series Pressure Transmitter PMP51/PMP51C

1.Descreption

    The device is used for the following measuring tasks:

    • Absolute pressure and gauge pressure measurement in gases, steams or liquids in all areas of process engineering and process measurement technology

    • Level, volume or mass measurement in liquids

    • High process temperature

    • without diaphragm seals up to 130 °C (266 °F), for a maximum of 60 minutes 150 °C (302 °F)

    • with diaphragm seals up to 400 °C (752 °F)

    • High pressure up to 400 bar (6000 psi)

    • International usage thanks to a wide range of approvals

2.Advantage

    • Very good reproducibility and long-term stability

    • High reference accuracy up to ±0.10 %, as PLATINUM version: ±0.075 %

    • Turn down up to 100:1

    • Uniform platform for differential pressure, hydrostatics and pressure (Deltabar M – Deltapilot M – Cerabar M)

    • Simple, fast commissioning through a user interface designed for real-world applications

    • Used for process pressure monitoring up to SIL 2, certified to IEC 61508 Edition 2.0 and IEC 61511 by TÜV NORD

    • The patented TempC membrane for the diaphragm seal reduces the measured error caused by environmental and process temperature effects to a minimum.

    • ASME-BPE-compliant device versions
