Fisher 1301F-3 1301 series High Precision filter pressure reducing regulator valve
Category:Fisher
1.Descreption

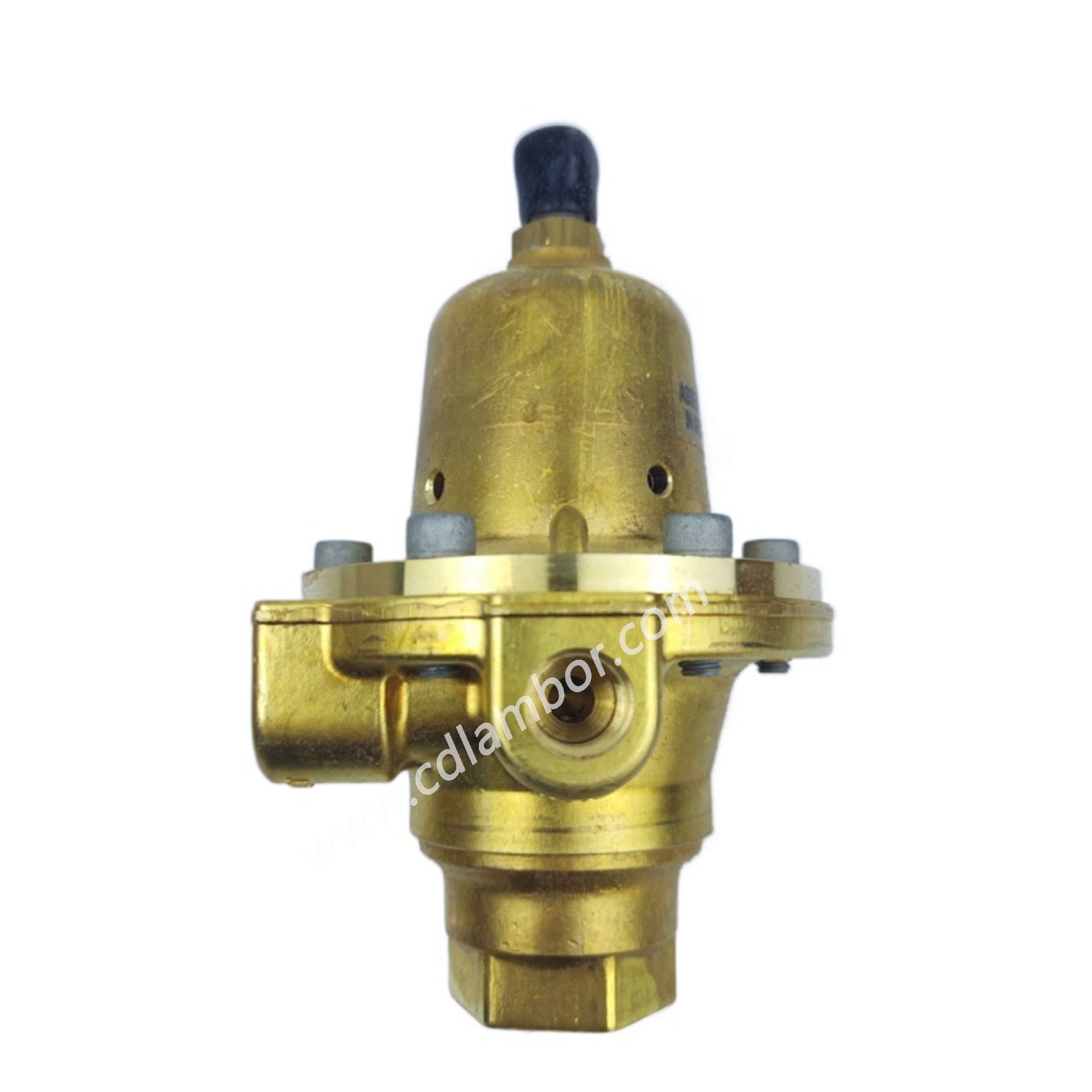

The proven reliability and accurate regulation of the 1301 Series regulators (see Figure 1) make them ideal for numerous high-pressure drop applications. They are direct-operated, high-pressure regulators designed for inlet pressures up to 6000 psig / 414 bar. The Type 1301F can handle outlet pressures from 10 to 225 psig / 0.69 to 15.5 bar in three ranges and the Type 1301G can handle outlet pressures from 200 to 500 psig / 13.8 to 34.5 bar in one range.
These multi-purpose regulators can be used as pilot supply or pressure-loaded regulators where high-pressure operating medium must be reduced for use by gas regulator pilots or pressure-loaded regulators. Their rugged design offers versatility for a wide variety of applications including air, gas, water, and other liquids. An optional spring case with a tapped vent and adjusting screw closing cap is available that enables the Type 1301F to be used as a pressureloaded regulator.
2.Features
• Durable stainless steel diaphragm for high outlet pressure applications;
• Equipped with spare valve port gasket - the valve port gasket support assembly is equipped with Outer valve port gasket;
• Wide range of applications - can control air, gas, water, other liquids, etc Medium;
• ANSI vI class shut-off valve - soft seat plug valve port gasket, ensuring tight shutoff;
• Available for sour gas - optional materials are available for sour gas treatment. This structural character Meet the requirements recommended by NACE international standards MR0175 and MR0103
3.Specifications
