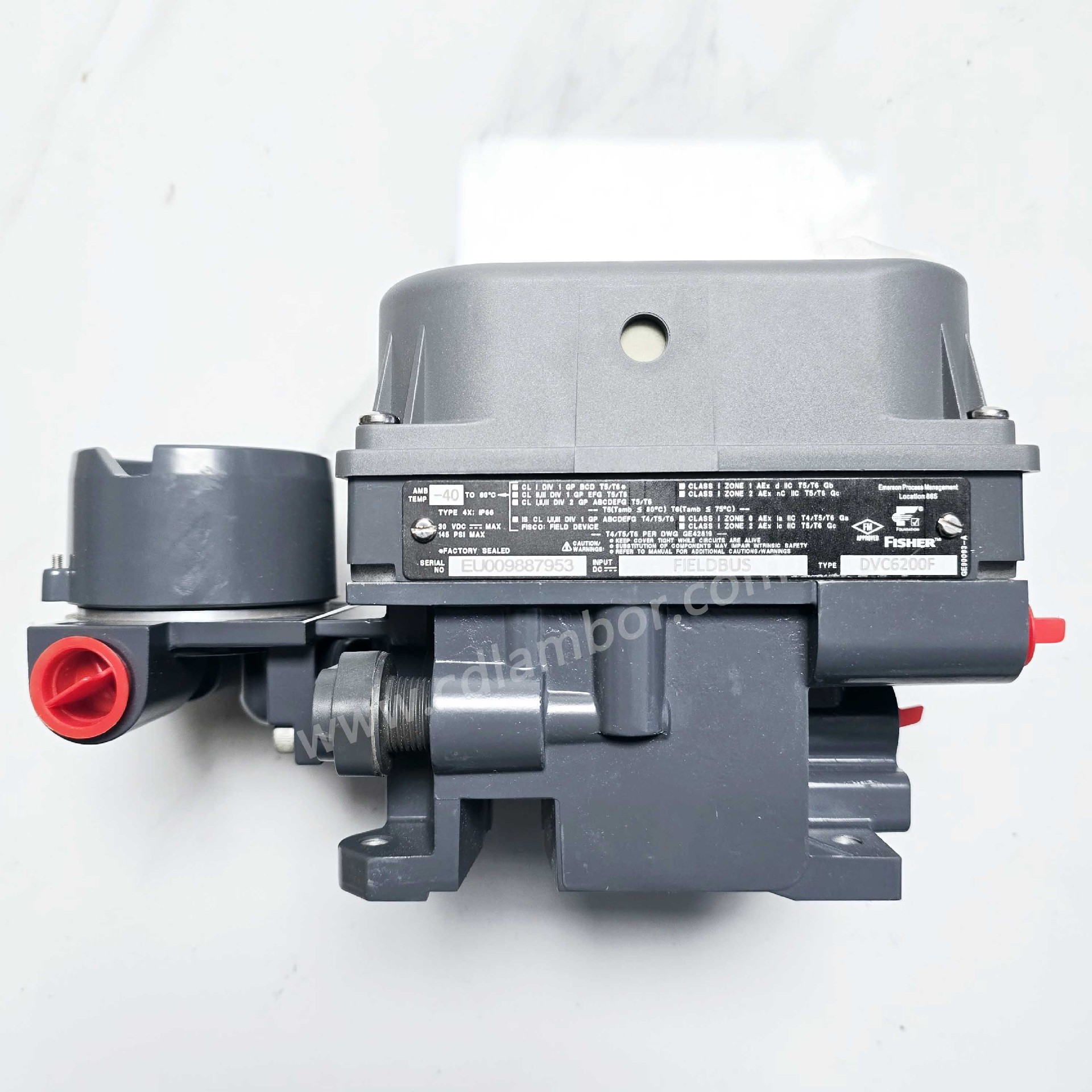

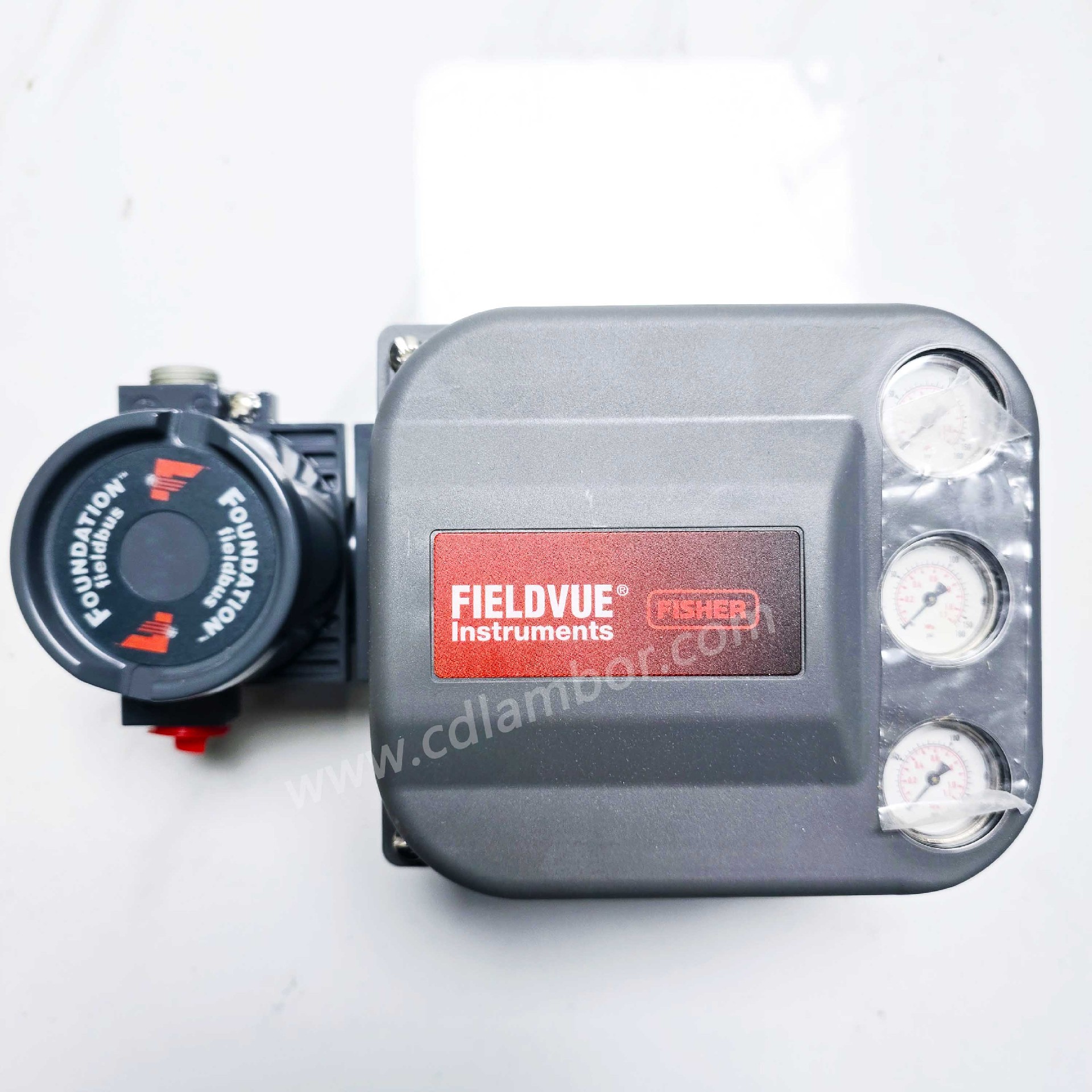

Fisher DVC6200F Positioner Foundation Fieldbus Digital Communication DVC6200

1）DVC6200 digital valve controller for modulating control service with HART 5, HART 7, FOUNDATION fieldbus™ or PROFIBUS PA protocol.

2）The HART device is SIL3 capable when input signal is 0 mA/0 VDC.

3）Aluminum or Stainless Steel constructions, Single-Acting Direct and Reverse and Double-Acting operation available.

4）Linkageless stem feedback solution using magnetic Hall-Effect contactless technology in conjunction with stem/shaft mounted magnet array.

5）Temperature range -40 to +85 ℃ (-40 to + 185 F); -52℃(-61.6 F) with fluorosilicone elastomers. Low temperature limit for Arctic CUTR with Ex d construction is -60℃ (-76F). Maximum inlet pressure 10 barg (145 psig).
